Document Printing

Short Description:

Gives the possibility to activate “Document printing” and “Direct printing of document with predefined job” directly from the device. This permission is available from WMS Studio in scenarios.

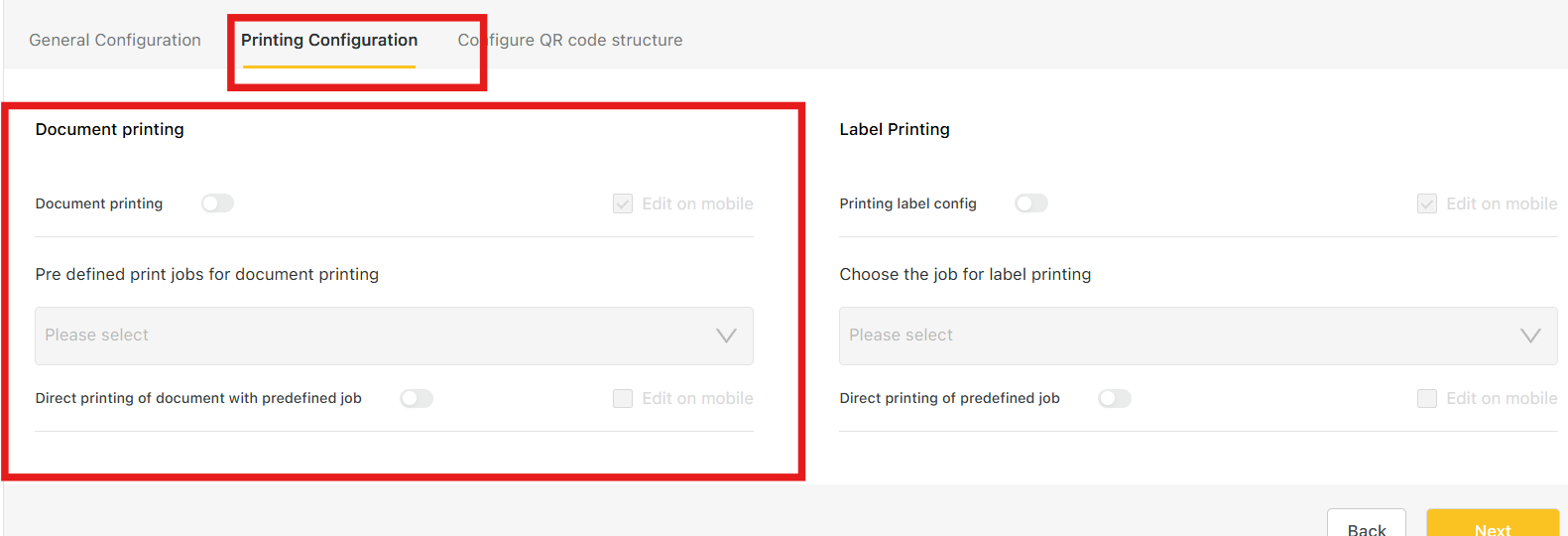

In scenario settings navigate on printing tab

Document Printing Switcher:

When the "Document Printing" switcher in the Web Application is ON:

• If "Document Printing" is set to 1 in settings, and "Direct printing of documents with predefined job" is OFF, a "Print” button appears.

  • Upon pressing the button, the user is asked if they want to choose another job after printing.

• If "Direct printing of document with Predefine print job" is set to 2 or more in settings, and "Direct printing of predefined job" is OFF, the "Print" button appears.

  • After pressing the button, a popup appears for the user to choose from predefined jobs.

Steps to Print Document:

1. Open the WMS Mobile Application.

2. Ensure that the "Document Printing" switcher is ON in the settings.

3. Adjust the "Document Predefine print job" setting based on your preference (1 for choosing after printing, 2 or more for predefined jobs).

4. If "Direct printing of predefined job" is OFF:

   • A "Print" button will appear on the screen.

   • Press the button to either print and choose another job (if the predefine is set to 1) or choose from predefined jobs (if the predefine is set to 2 or more).

Configuration Options:

• Print Document:

  • Turn ON to activate the “Document Printing” feature.

• Direct Printing with Predefine job:

  • Set to 1 for choosing another job after printing.

  • Set to 2 or more for choosing from predefined jobs after pressing the "Print" button.

• Direct printing of Documents with predefined job:

  • Turn OFF to enable the "Document Printing" button with the specified behaviour based on the Direct printing of documents with predefined job" setting.
