Logiks Data Gateway Connection

Short Description:

How to Install the Gateway and Manage the Gateway

When the WMS Mobile App connects through the Gateway, the user can choose which URL the app will use to connect.

• The Internal URL is automatically provided by the Gateway.

• The Cloud URL is routed through Cloudflare.

• The External (local) URL can be manually entered by the user in the Gateway Management interface.

The WMS Mobile App can choose from all three URLs when connecting.

Both the Internal and External URLs are visible in Gateway Management:

• The Internal URL can only be changed using the Gateway Installer.

• The External URL can be entered or updated manually in Gateway Management.

The Cloud URL is not shown in the interface; it’s stored and handled quietly in the background.


Manual for Feature usage:

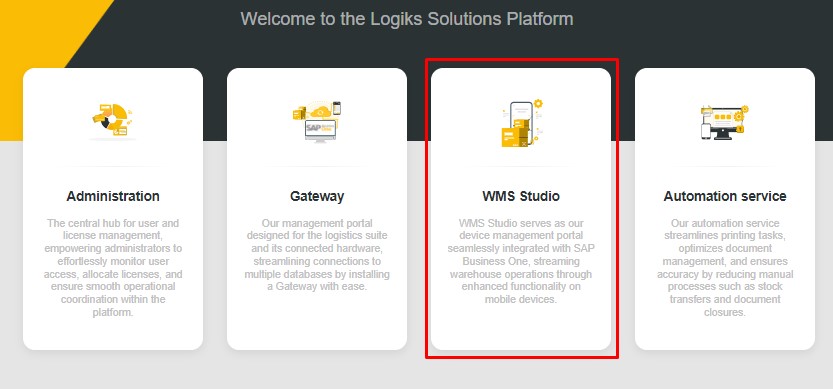

1. Go to the WMS Studio modal

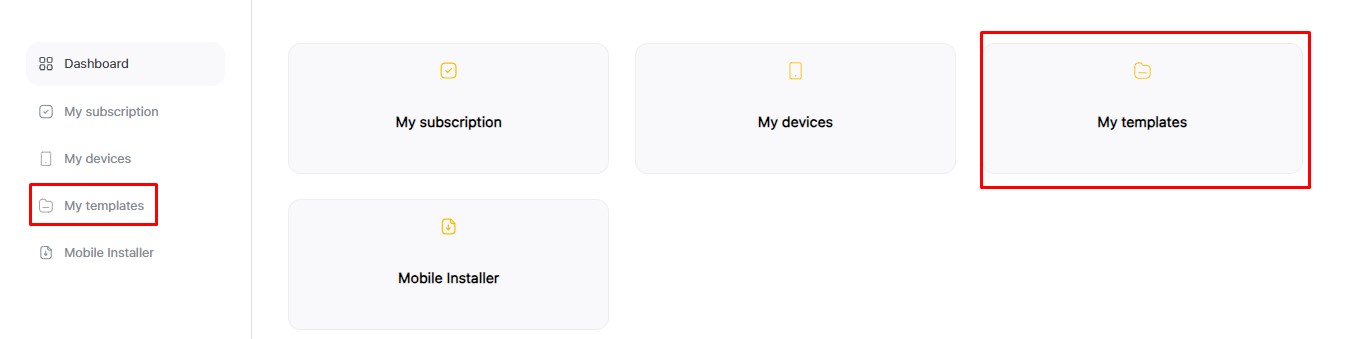

2. Open My Templates

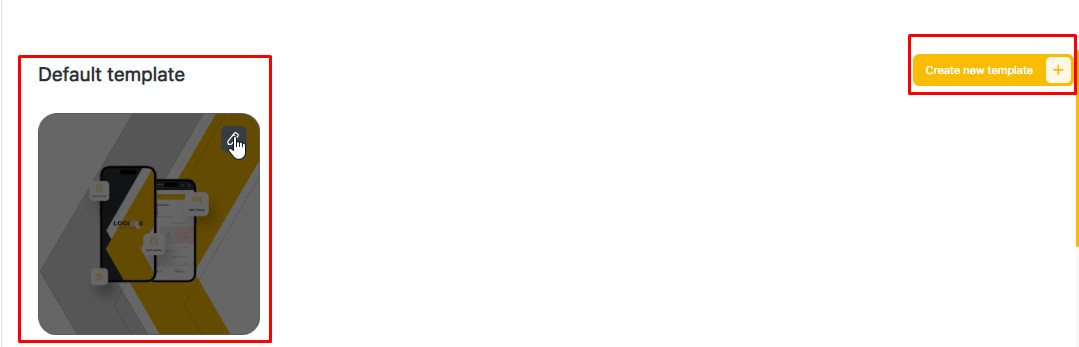

3. Create New or Edit already existing Template

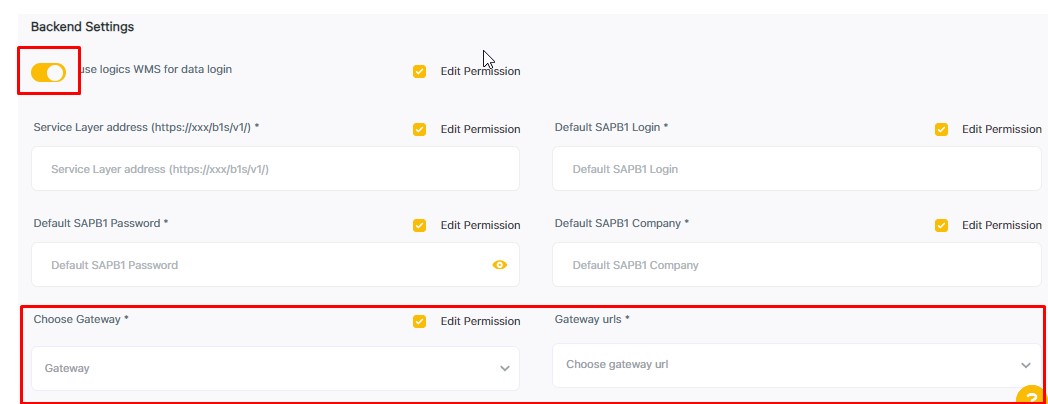

4. Turn on the Switcher “Use logiks WMS for data login” which will give the possibility to “Choose Gateway” and “Gateways URLs” via the Drop-down menu

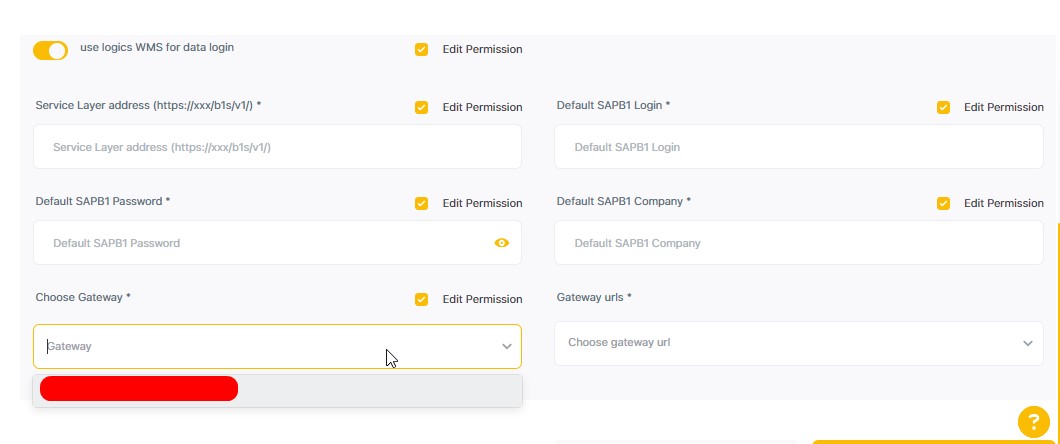

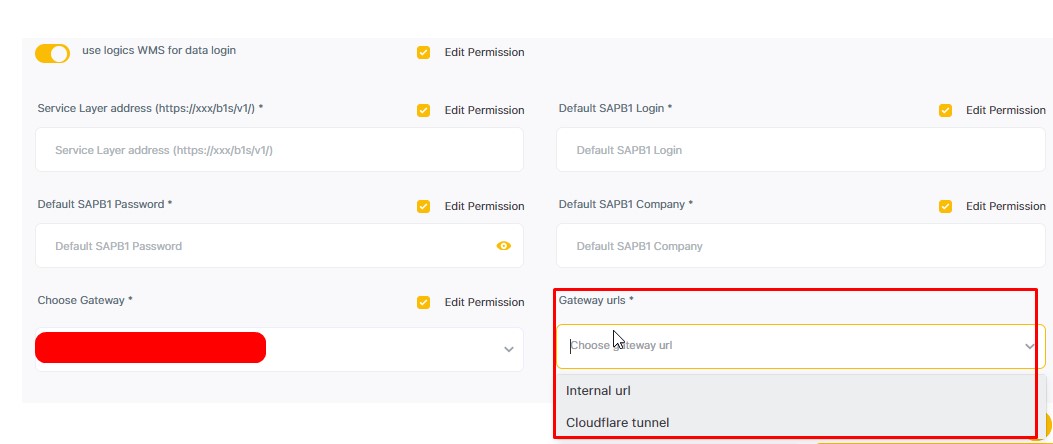

   First “Choose Gateway” which will give the possibility to select “Gateway URLs”












   Press the link to check how to Manage External URL
